Working of IGBT(Insulated gate bipolar transistor)

IGBT stands from Insulated gate bipolar transistor. It is a three terminal semiconductor device is named as gate, emitter and collector. The terminals of the IGBT are associated with a conductance path and gate terminal is associated with its control.

Working of IGBT

Working of IGBT

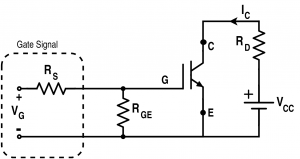

When the gate terminal is positive with respect to emitter and with gate- emitter voltage more than the threshold voltage of IGBT, an n-channel is formed in the p-regions as in a power MOSFET. This n-channel short circuits the n region with n+ emitter regions. An electron movement in the n-channel, in turn causes substantial hole inject from p+ substrate layer into the epitaxial n layer. Ultimately a forward current is established show in fig.
